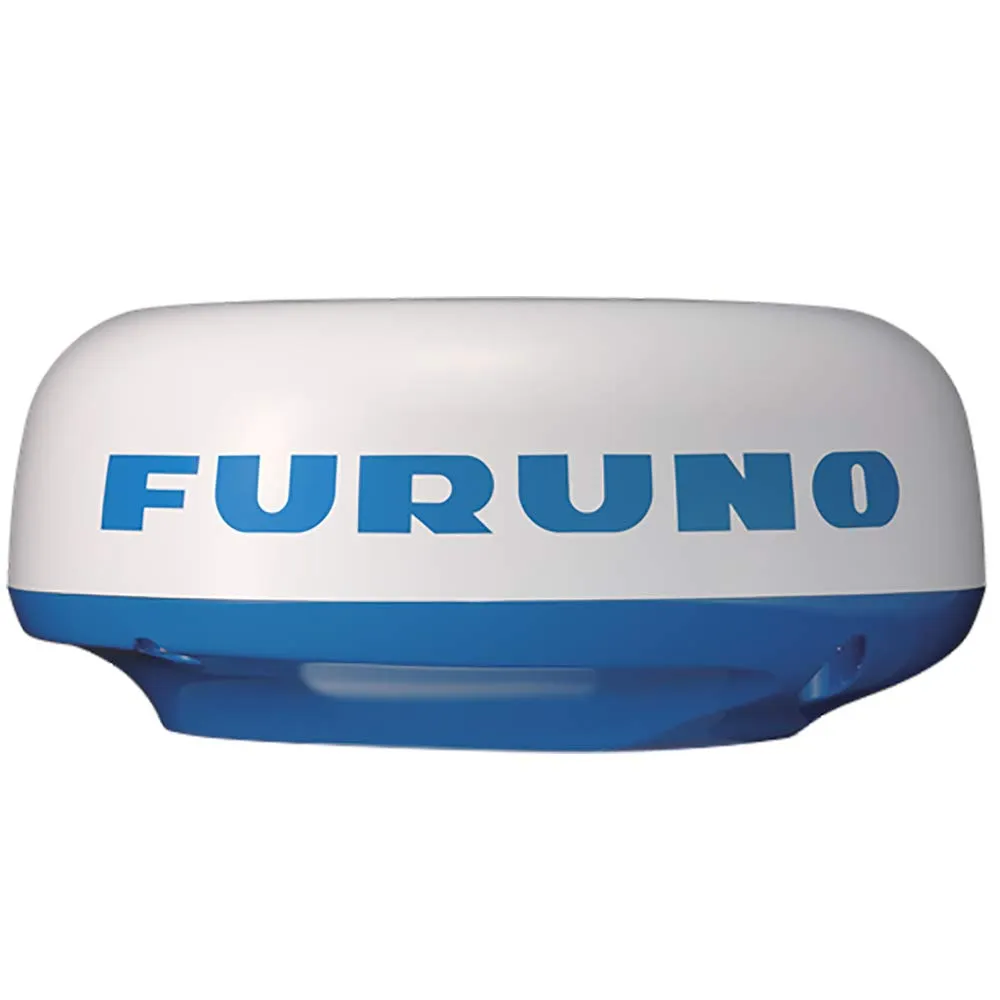

DRS4DL Radar Dome, 4kw, 19" 36NMThe DRS4DL is a , 19" dome Radar Sensor for NavNet TZtouch and NavNet TZtouch2. This 4kW Radar is presented in a compact, rugged 19" dome with a 5.2 degree horizontal beamwidth antenna. Furuno's automatic, real-time digital signal processing presents navigators with some of the clearest targets they'll ever find from a Radar of this compact size. The DRS4DL utilizes a wired connection with NavNet TZtouch and TZtouch2. In combination with the TZTL12F/15F, this single-wire solution results in a very simple installation.The DRS4DL spins at a fixed 24RPM, and has range scales from 1/8 nm to 36 nm. The DRS4DL is designed to work with NavNet TZtouch and TZtouch2 systems. It is not compatible with NavNet 3D.Fast Target Tracking (TT) / ARPA on the DRS4DL manually or automatically acquires and tracks 10 targets*. After selecting a target, it only takes a few seconds for a speed and course vector to be displayed. With accurate tracking information, estimation of other vessel's course and speed is made simple. *heading sensor requiredFeatures:Compact 19" 4kW / 24 RPM / 36NM UHD Radome5.2° horizontal / 25° vertical beamwidthUltra-High Definition (UHD) Digital Radar delivers crystal-clear targets"Fast Target Tracking" TT / ARPA provides heading and speed for up to 10 targets (*heading sensor required)Advanced auto-adjust settings for Gain/Sea Clutter/Rain ClutterEasy installation w/"pigtail" for power & LAN, including 15m signal cable12-24 VDC supplied by ship's mains (no PSU required)Lightweight 5.7kg/12.5lbs designLow power consumption: 23 Watt TX / 10 Watt STBYIPX6 waterproofing & -25°C to 55°C environmental ratingCompatible with NavNet TZtouch (v5.01 or higher) & TZtouch2 (v5.02 or higher)

• Date First Available ‏ : ‎ October 3, 2015
• Manufacturer ‏ : ‎ Furuno
