- Driver: 6.5 inches coaxial driver with high-frequency PEI tweeter/acoustic lens
- Transformer: 32W (tap selector behind grille). Taps for 25V, 70V or 100V speaker systems, and 4 ohm (UL min.) transformer bypass position
- Enclosure: Painted (grey) steel back-can with mounting dogs
- Grille: Press-fit grille with scrim, pull-tool
- Mounting Aids: Plastic paint shield to protect driver, C-ring and support rails
- Installs in drywall, wood, tile or almost any ceiling with thickness up to 2.125 inches

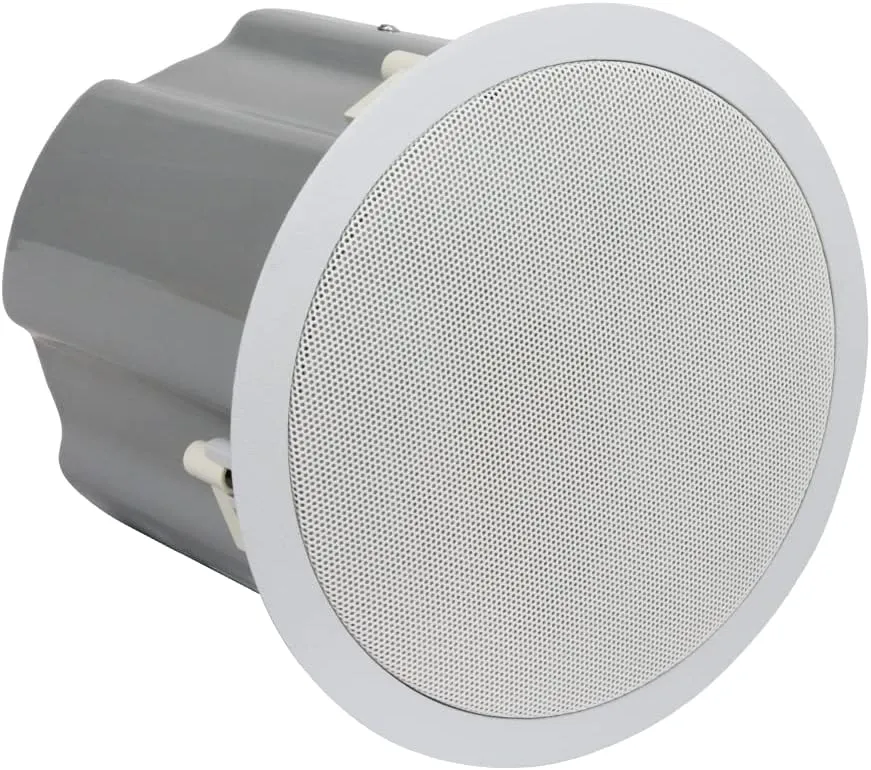

Lowell ES-62T 6.5-Inch Coaxial Ceiling Speaker with Transformer, Grille, Enclosure, Mounting Ring/Rails; High-Frequency PEI Tweeter/Acoustic Lens; 32 W Transformer; Steel Back-Can
Model ES-62T produces excellent intelligibility for speech and full-frequency response for music making it ideal for retail, commercial, industrial, institutional, and residential applications. This self-contained in-ceiling speaker system with 6.5 inch coaxial driver has a high-frequency PEI tweeter with acoustic lens to provide the kind of crisp, high-frequency response expected from high quality coaxial speakers
Key Features:
- Driver: 6.5 inches coaxial driver with high-frequency PEI tweeter/acoustic lens
- Transformer: 32W (tap selector behind grille). Taps for 25V, 70V or 100V speaker systems, and 4 ohm (UL min.) transformer bypass position
- Enclosure: Painted (grey) steel back-can with mounting dogs
- Grille: Press-fit grille with scrim, pull-tool
- Mounting Aids: Plastic paint shield to protect driver, C-ring and support rails
- Installs in drywall, wood, tile or almost any ceiling with thickness up to 2.125 inches
Specifications:
- Driver: 6.5-inches 50W coaxia
- Transformer: 32 W
- Overall Depth: 10.16 inches
- Overall Diameter: 9.84 inches
- Color: white
- Impedance: 8 ohms (nominal), 4.0 ohms at 12461 Hz (min.)
- Conical Dispersion Angle: 120 degrees conical at 2kHz octave (-6dB)
- Sensitivity (measured half space): 88.6 dB; Average Sensitivity: SPL at 1W/1M
- Shipping Weight: 12 lbs
