Compared to the DHT22, this sensor is less precise, less accurate and works in a smaller range of temperature/humidity, but its smaller and less expensive

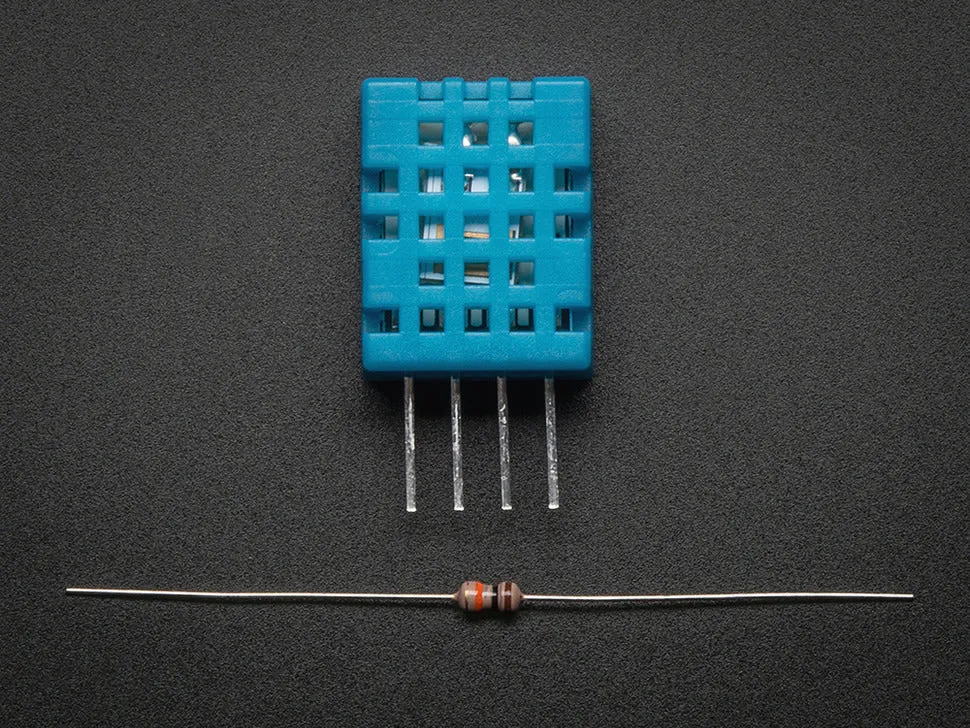

Comes with a 4.7K or 10K resistor, which you will want to use as a pullup from the data pin to VCC.
TECHNICAL DETAILS
- Low cost
- 3 to 5V power and I/O
- 2.5mA max current use during conversion (while requesting data)
- Good for 20-80% humidity readings with 5% accuracy
- Good for 0-50°C temperature readings ±2°C accuracy
- No more than 1 Hz sampling rate (once every second)

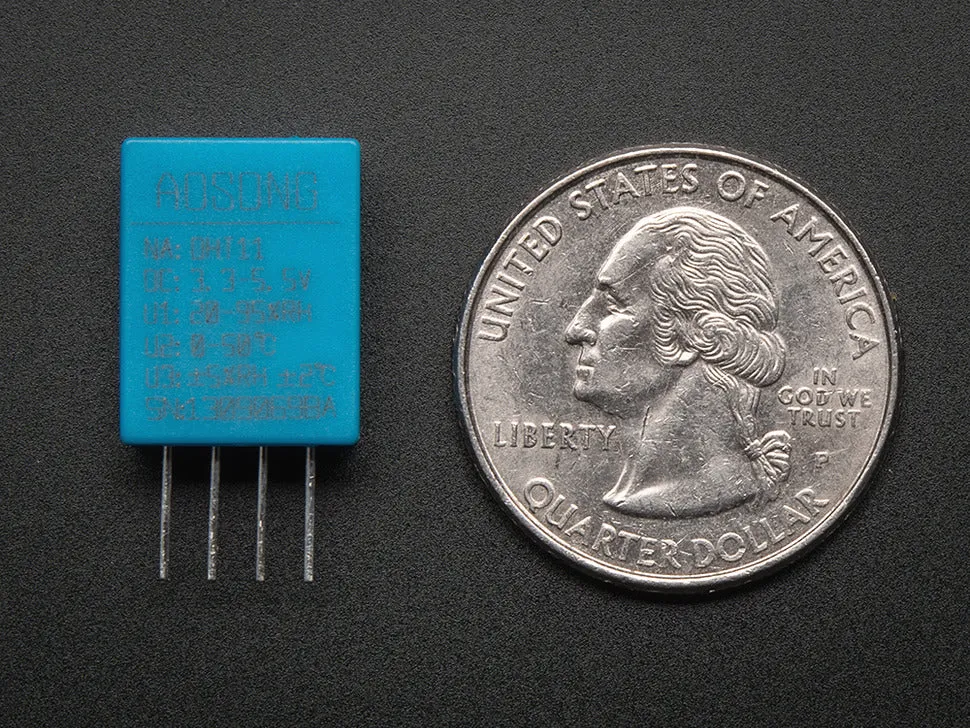

- Body size 15.5mm x 12mm x 5.5mm
- 4 pins with 0.1" spacing
Downloads:
We have the DHT11 datasheet but its in chinese so its not easy to understand. However, the sensor protocol and timing is similar to the DHT22 so check out the DHT22 datasheet for more information
Arduino library and example code
Detailed usage tutorial
