- [Efficient workflow] Productivity increases with a rapid rate of 30 scenes for the recognition of fast ships.
- [Easy to use] convenient liberation of buttons or automatic induction scan modes for easy use.
- [Flexible configuration] Adjust the scanning configuration manually with several input applications available.
- [Different applications] suitable for retailers, warehouse, inventory and more with extensive functionality.
- [Light and practical] Compact design for simple handling, for mobile scanning tasks.
1. Connection of 3 types: The scanner of wireless bar code of 2.4 g is compact and the light and is compatible with the wireless connection -, 2.4 -G -g -g -inalambrica and wireless USB connection to meet the requirements of different occasions.
2. Schnell und Genau: Der -Barcode -Ter Verwendet 640x480 Hochauflösungssensor, Der 1D- und 2D -Barcodes Schnell und Genau Erkenne Kann, und opertrate Beträgt bret bise zu 30 bilder pro sekunde, was dead in verbes.
3 .. OMNI directional scan: scanning the All -Rund cover, you can recognize a variety of a dimensional code and two , support to read the mobile phone to adapt to a variety of use environments.
4 .. Shock : 2D 1D BARCODE -Scanner assumes a high design, shock can support 1.5 m high to meet the needs of use in a variety of work environments.
5,1100 Mah Battery: -Barcode -Reader in 1100 -Mah -Lithium -chium -ku, Standby Time of Up To 5 Days, 12 Hours of Continuous Works, The Loading Time is Only About 2 Hours, Which is significantly Improving the Work Efficient of the User.
Technical data:

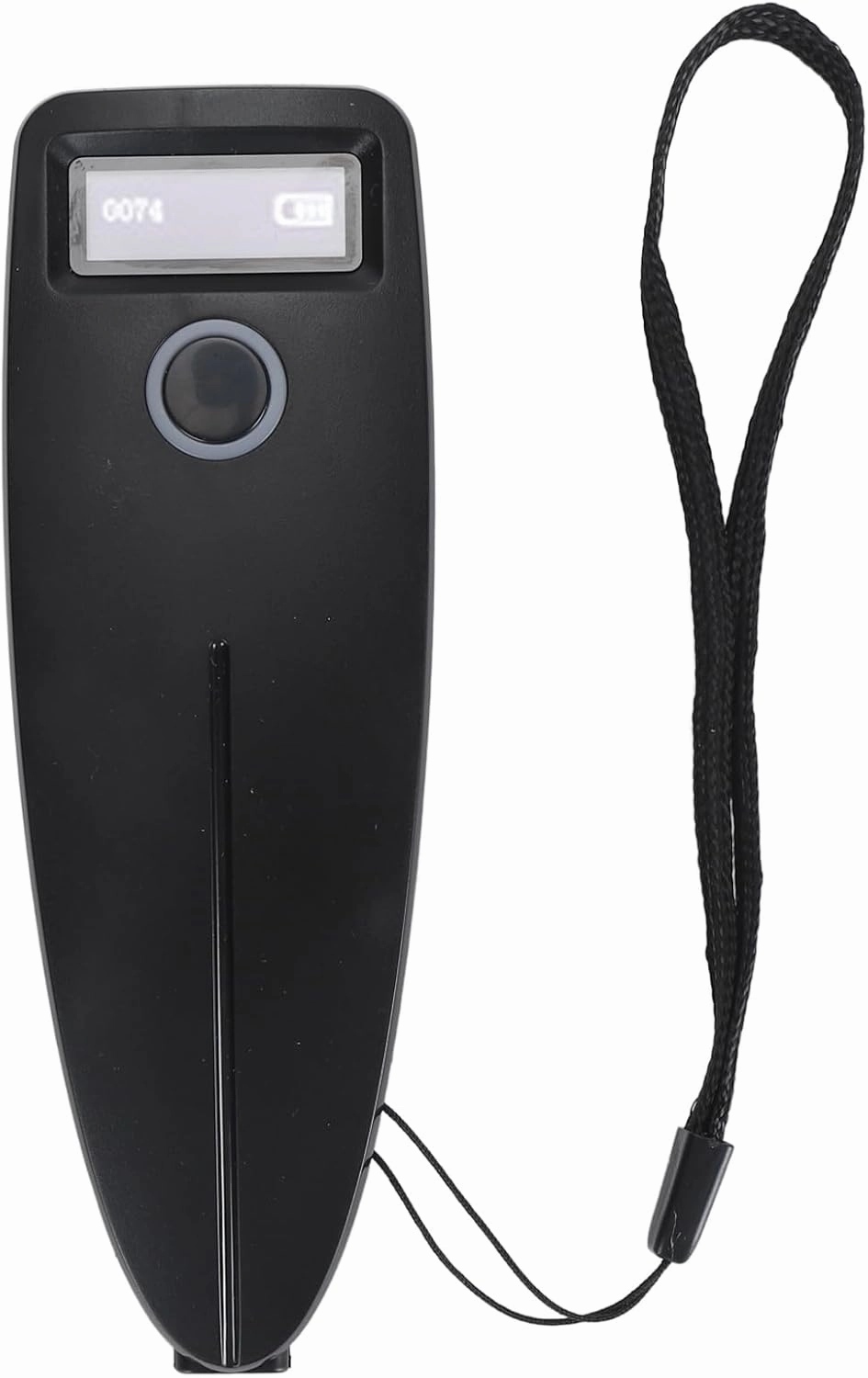

Type: 2D barcode scanner
Material: ABS
Connection: wireless connection / 2.4g / USB cable three modes
Wireless 2.4 g Distance: approx. 0-80 meters / 0-262FT (open environment)
Wireless extraction: approx. 0-20 meters / 0-66 feet (open environment)
Cable length: Usb straight approx. 1 meter / 3.3 feet
Scanning mode: buttons release, automatic induction, continuous scan
Input application mode: Summer, screen, vibration engine
Configuration mode: Manual configuration scan Code after another
Internal memory: 900k
Sensor: 300K CMOS
Resolution: 640x480
Light Source: LED
Scan angle: ± 60 °, ± 60 °, 360 ° (altitude angle, decline, rotation)
Scan speed: 30 pictures/seconds
Sichtfeld: 48 ° (horizontal) x 30 ° (VERTIKAL)
Print contrast: 15% minimum
Decoding type:
1D: EAN 13, EAN 8, UPC A, UPC E, ISSN, ISBN, CODABAR, CODE 128, CODE93, NESted 2 OF 5, INDUSTRIAL 2 OF 5, GS1 DATABASE (), CODE39, CODE 11, PLESSEY, etc.
2D: QR code, data , PDF417, Micro QR, AZTEC, etc. Mobile phone screen reading code support
Minimum resolution: 1d 5 thousand code; 2D 7D code
Field depth:
QR (7mil) approx. 70-15 mm / 2.76-4.53in
EAN 13 (13.3 million) approx. 70-310 mm / 2.76-12.2in
Data (10 thousand) approx. 50-110 mm / 1.97-4.33in
(8.3 thousand) approx. 65-205 mm / 2.56-8.07in
PDF 417 (7 thousand) approx. 55-140 mm / 2.17-5.51IN
Code 128 (8.3 thousand) Approx. 75-235 mm / 2.95-9.25 inches
Battery type: 1100 mAh lithium battery installed
Load time: approx. 2 hours
Operating time: 5 days (wait), 12 hours (work: scan every 5 seconds)
Environmental brightness: a maximum of 5,000 lx (fluorescence)
Shock : approx. 1.5 meters / 4.9 feet fallen
How to use:
Cable or wireless connection 2.4g: plug -ad -play
The wireless connection: the search connection after electricity and mating can be
Packaging list:
1 x scanner (mit integrotem akku versand)
1 x Data cable
1 x receiver
1 x operating instructions
